     In this post I will show the research process I went through in order to understand, build and draw the plan, section, elevation and site plan of the Naoshima Port Terminal by SANAA.







In these pictures I have tried to find the real dimensions of the pavilion by taking as a reference the maximum height and scaling a picture in AutoCad.

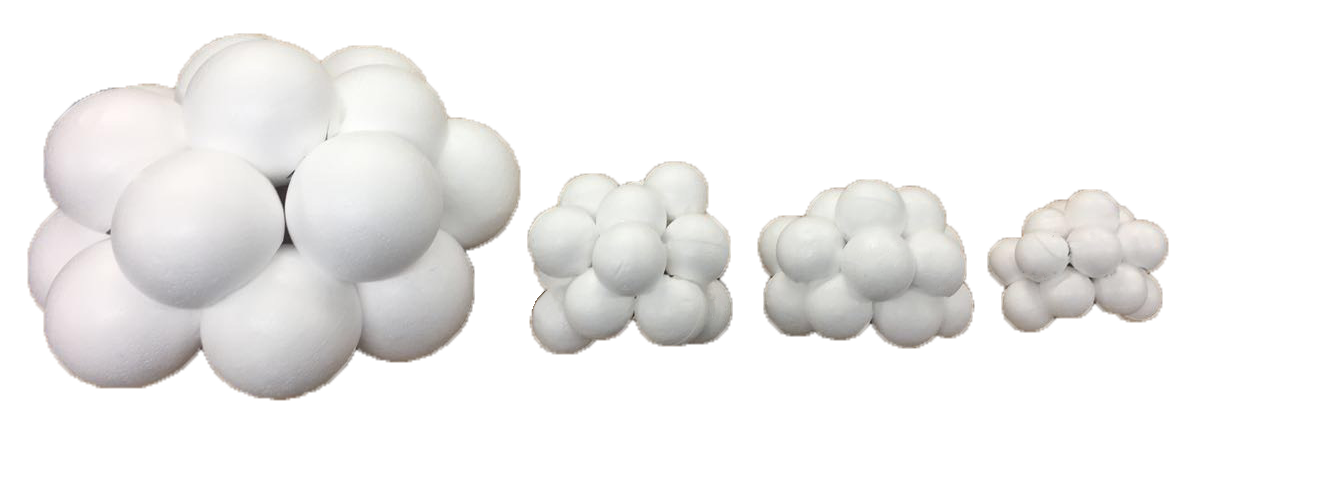

I then made a negative of the pavilion using polystyrene spheres in order to cover it with fiberglass and resin to create the outer shell.
